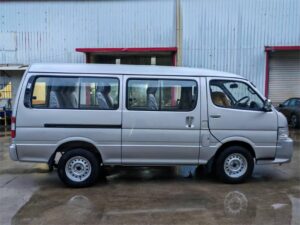

Overview of the Compact Commercial Cargo Van
The Compact Commercial Cargo Van is a multi-purpose business transport vehicle built for reliability, efficiency, and versatility. Designed for both goods and passenger transport, it comes in 2-seater and 5-seater configurations, making it ideal for small businesses, logistics fleets, and urban deliveries.
With vehicle dimensions of 4400×1650×1920 mm and a wheelbase of 2850 mm, this light commercial van offers spacious cargo capacity within a compact frame — ensuring ease of navigation through narrow city streets while maintaining a professional, functional design.
Powered by advanced 1.3L and 1.5L gasoline engines, it delivers excellent power, durability, and fuel economy, ideal for both urban distribution and regional operations.
Powerful and Efficient Engine Options
The Light Commercial Cargo Van is available in three engine configurations — HH413Q/P-B (1.3L), DAM15R (1.5L), and HH415Q/P-A (1.5L) — all engineered to balance performance and fuel efficiency.
Each model generates 82 kW at 6000 rpm and up to 140 N·m of torque, providing smooth acceleration and dependable performance even under full load.
Its manual 5-speed gearbox ensures responsive shifting and enhanced driver control.
Meeting EURO IV and EURO V emission standards, this van offers eco-friendly operation for modern logistics and small business fleets.
Practical Design and Superior Load Capacity
The Compact Commercial Van is designed to maximize versatility and payload.
2-seater models support up to 835 kg of payload, ideal for goods and logistics.
5-seater models balance passenger comfort with cargo space, suitable for mixed-use operations.
Built on a 4×2 rear-drive system, the van ensures steady handling and traction. The independent front suspensionand parallel leaf spring rear suspension enhance ride stability, even when fully loaded.
Its 175R14LT 8PR tires provide durability and strong grip across urban and rural roads.
Safety, Comfort, and Durability
Equipped with a rack-and-pinion steering system, the van delivers responsive control and a smooth driving experience.
A 45L fuel tank supports extended travel range, while the maximum speed of 130 km/h ensures fast, efficient deliveries.
Built for endurance, the Compact Commercial Van combines high-quality materials with robust structural integrity, offering businesses a dependable vehicle that minimizes operating costs and downtime.
Product configuration
| Model | SCH5022XXYDE | SCH5025XXYSE | SCH5022XXYD4 | SCH5022XXYS4 | SCH5022XXYDH1 | SCH5022XXYSH1 | |
| Seats | 2 | 5 | 2 | 5 | 2 | 5 | |
| Dimension parameters | |||||||
| Vehicle dimension(L*W*H) | mm | 4400*1650*1920 | 4400*1650*1920 | 4400*1650*1920 | |||
| Wheelbase | mm | 2850 | 2850 | 2850 | |||
| Track(front/rear) | mm | 1390/1410 | 1390/1410 | 1390/1410 | |||
| Engine | |||||||
| Type | 1.3L | 1.5L | 1.5L | ||||
| Model | HH413Q/P-B | DAM15R | HH415Q/P-A | ||||
| Displacement | ml | 1206 | 1498 | 1512 | |||
| Compression Ratio | 9.8:1 | 10.5:1 | 10.7:1 | ||||
| Power | KW/rpm | 82/6000 | 82/6000 | 82/6000 | |||
| Max. Torque | N.M/rpm | 138/4000 | 138/6000 | 140/4000 | |||
| Mass Parameter | |||||||
| Curb Mass | Kg | 1120 | 1145 | 1165 | 1195 | 1190 | / |
| Payload | Kg | 835 | 580 | 535 | 280 | 510 | / |
| Total Mass | Kg | 2100 | 1850 | 1850 | |||
| Other System and performance paramter | |||||||
| Drive Type | 4X2,rear drive | ||||||
| Fuel Tank Capacity | L | 45 | |||||
| Emission Standard | EURO IV | EURO V | EURO V | ||||
| Steering System | Rack-and-pinion steering-gear | ||||||
| Suspension Sytem | Front | Independent suspension | |||||
| Rear | Parallel leaf spring and absorber | ||||||
| Gear Box | Manual,5 speed and 1 reverse,synchronizing | ||||||
| Tire | 175R14LT 8PR | ||||||
| Max. Speed | Km/h | 130 | |||||
