Overview of the Special Vehicle Series
The Special Vehicle Series is designed for modern logistics, cold chain transportation, and flexible delivery solutions. This lineup features two professional configurations — the Wing-Open Truck and the Refrigerated Truck — built to provide high efficiency, durability, and cost-effectiveness for commercial users.
Powered by a 1.5L DAM15KR engine delivering 85 kW and 150 N·m of torque, this vehicle combines strong performance with fuel economy, ensuring reliable operation for both urban and intercity logistics. It meets the China VI-B-2 emission standards, reflecting advanced environmental compliance and sustainability.
Superior Design for Business Flexibility
The Wing-Open Special Vehicle offers an innovative side-opening structure with a spacious cargo compartment measuring 2740×1550×1600 mm, enabling quick and easy loading and unloading. This makes it ideal for transporting goods in tight urban environments, event logistics, and mobile retail setups.

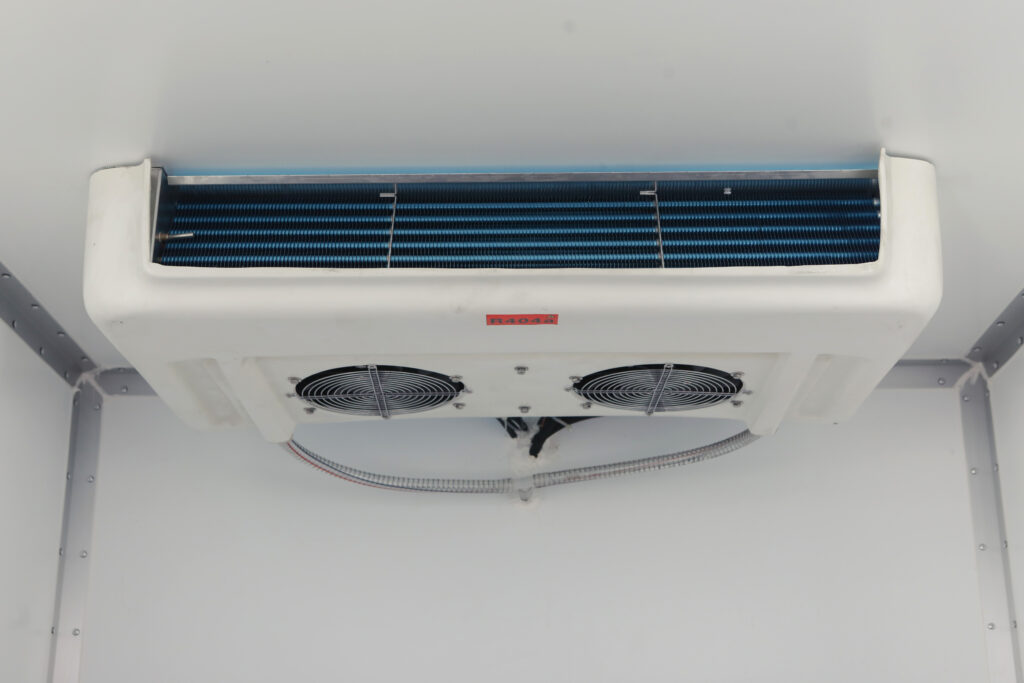

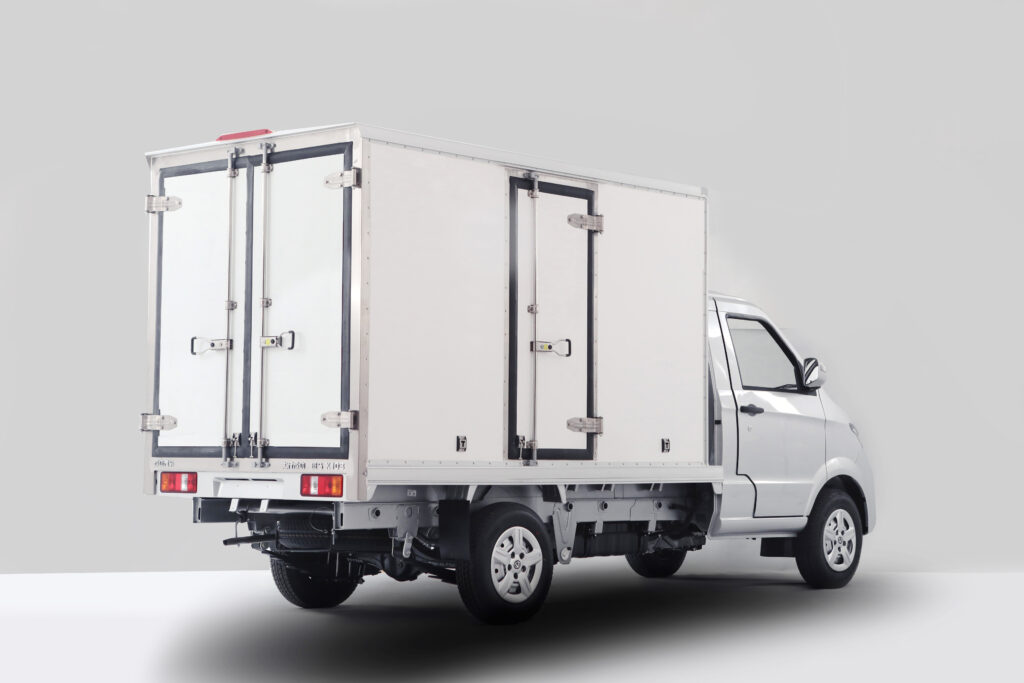

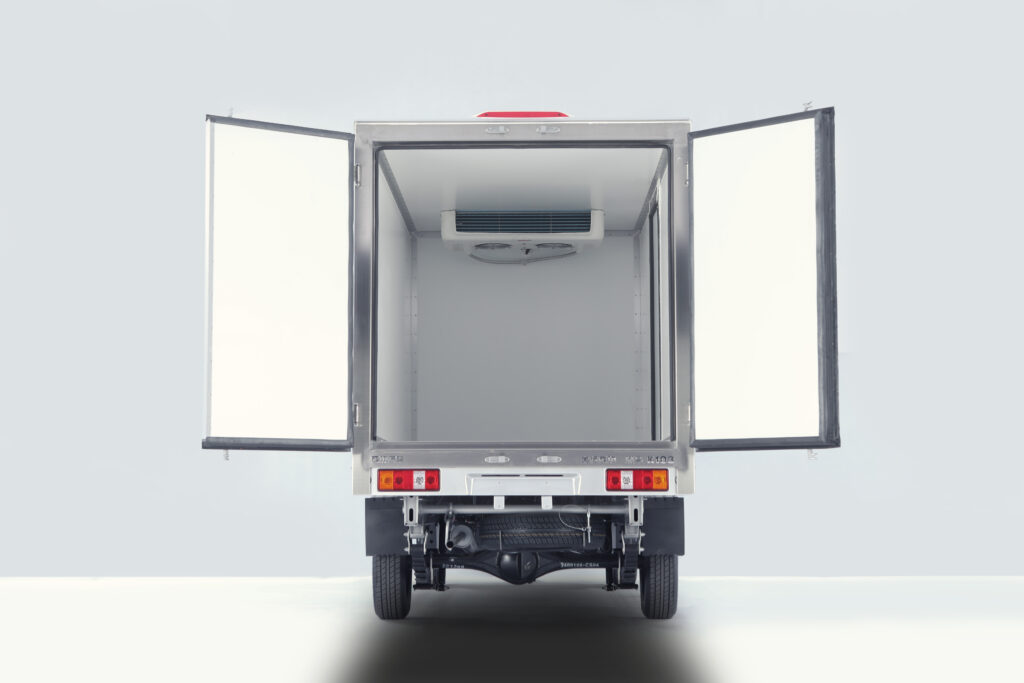

For industries requiring temperature-controlled delivery, the Refrigerated Truck configuration provides insulated cargo dimensions of 2650×1450×1445 mm, maintaining stable low temperatures for perishable goods. It is a perfect solution for food, medicine, and cold-chain supply operations.
Engineered for Efficiency and Stability
Both variants are equipped with McPherson independent front suspension and longitudinal leaf spring rear suspension, ensuring stability even under full load.
With a manual 5-speed transmission, rear-wheel drive, and top speed of 100 km/h, the Special Vehicle Series offers smooth control and consistent performance across diverse road conditions.
The Wing-Open model has a rated load of 1005 kg, while the Refrigerated model supports 910 kg, providing excellent payload capacity for light commercial applications.
Reliable, Eco-Friendly, and Built for Growth
Designed to meet the evolving needs of logistics businesses, the Special Vehicle Series delivers unmatched adaptability — from urban express deliveries to regional cold-chain operations. Its efficient powertrain, optimized structure, and eco-friendly emission standards make it a strong choice for companies seeking sustainability without compromising productivity.
Product configuration
| Product configuration information of Special Vehicle | ||||||
| Vehicle model status | Single Row Standard-Wing Span | Single Row Standard-Refrigerated | ||||
| Classic | Comfortable | Luxury model | Classic | Comfortable | Luxury model | |
| Length, width and height (mm) | 4850*1635*2480 | 4850*1635*2485 | ||||
| Wheelbase (mm) | 3275 | |||||
| Front/rear track (mm) | 1390/1410 | |||||
| Inner dimension of cargo box fence L * W “H” (mm) | 2740*1550*1600 | 2650*1450*1445 | ||||
| Full load mass (kg) | 2505 | |||||
| Curb weight (kg) | 1370 | 1465 | ||||
| Rated load (kg) | 1005 | 910 | ||||
| Rated load 495 kg-small tonnage model | None | None | ||||
| Rear axle speed ratio | 4.3 | 4.778 | ||||
| Engine model | DAM15KR | |||||
| Displacement (ml) | 1498 | |||||
| Maximum power (kw) | 85 | |||||
| Maximum torque (N. M) | 150（4900r/min） | |||||
| Transmission form | Manual-5 speed | |||||
| Drive mode | Mid-mounted rear drive | |||||
| Maximum speed (km/H) | 100 | |||||
| Front suspension type | McPherson independent suspension | |||||
| Rear suspension type | Longitudinal leaf spring dependent suspension | |||||
| Brake. Brake | Front disc/rear drum | |||||
| Minimum ground clearance (mm) | 160 | |||||
| Minimum turning radius (m) | 6.1 | |||||
| Emission standards | China VI-B-2 Phase | |||||
